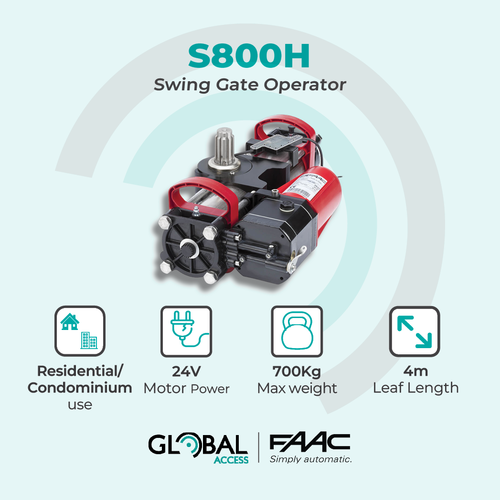

The FAAC S800 Underground Swing Gate Operator is fantastic for use on swing gates with leaves up to 4m in length

• Integrated '2EASY' BUS magnetic encoder
• Integrated Positive Stops - Opening angle 100° OR 180°

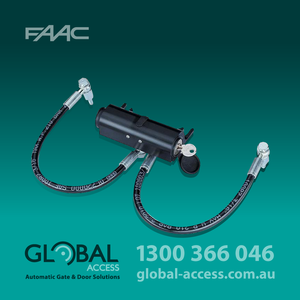

• Lever operated release key - Optional Hydraulic release
• E124 Advanced Control Board
• Inbuilt encoder
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

GATES UP TO 3M EACH LEAF - 100°

DOUBLE KIT:
2 x 24v S800H 100° Motors, 2 x Self Bearing Case, 2 x Manual Release, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Receiver, 2 x Long Range Transmitters, 1 x High Powered Aerial & 230v plug, 10m 1013-0004 Twin Core & 1013-0008 Shielded Cable.

SINGLE KIT:
1 x 24v S800H 100° Motor, 1 x Self Bearing Case, 1 x Manual Release, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Receiver, 2 x Long Range Transmitters, 1 x High Powered Aerial & 230v plug, 10m 1013-0004 Twin Core & 1013-0008 Shielded Cable.

GATES UP TO 3M EACH LEAF - 180°

DOUBLE KIT:
2 x 24v S800H 180° Motors, 2 x Self Bearing Case, 2 x Manual Release, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Receiver, 2 x Long Range Transmitters, 1 x High Powered Aerial & 230v plug, 10m 1013-0004 Twin Core & 1013-0008 Shielded Cable.

SINGLE KIT:
1 x 24v S800H 180° Motor, 1 x Self Bearing Case, 1 x Manual Release, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Receiver, 2 x Long Range Transmitters, 1 x High Powered Aerial & 230v plug, 10m 1013-0004 Twin Core & 1013-0008 Shielded Cable.

IMPORTANT NOTES

• Optional physical ground stops in both open and closed positions!
