FAAC 770 24v Electric Underground Swing Gate Motor - ADVANCED

1655-0016

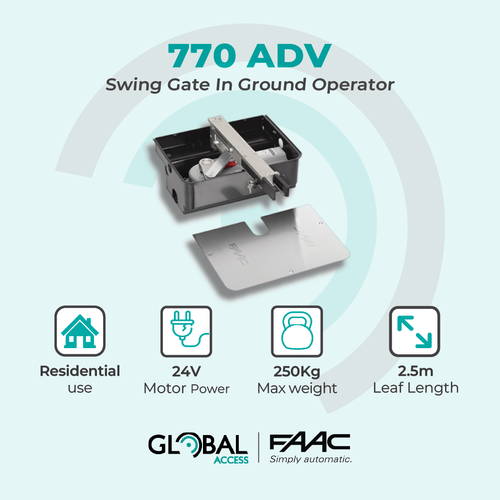

The FAAC 770 Underground Swing Gate Operator is fantastic for use on swing gates with leaves up to 2.5m in length.

• Irreversible, electro-mechanical, lever operated release with key
• For large pillar applications
• Optional mechanical stops are available
• Solar friendly
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

ADVANCED VARIANTS
DOUBLE KIT:
2 x 24v 770 irreversible motors, 2 x Foundation Boxes, 1 x Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features), 1 x High Powered Aerial & 230v plug.

SINGLE KIT:
1 x 24v 770 irreversible motors, 2 x Foundation Boxes, 1 x Receiver, 2 x Long Range Transmitters, E124 Control Board with Advanced Features), 1 x High Powered Aerial & 230v plug.

IMPORTANT NOTES

• Ground stops are required in both open and closed positions!
• Optional Solar Kits are available

Product Variations

Product Information


Product Specifications

Country of Origin:

ITALY

Important Notes:

We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

Recommended Maximum Gate Weight:

250Kg @ 2m (Leaf Width)

Motor Volts:

24v

Duty Cycle:

Continuous

Opening:

Single Leaf Gate: Up to 2m Max. per leaf, 3m Max. with a lock

Usage:

RESIDENTIAL

Strength Rating:

3

Cable Required:

2 x 2.5mm²

Minimum Side Room:

N/A

Ground Stops Required:

Ground Stops are required in both open & closed positions. Optional Mechanical Stops Available

Maximum Gate Length:

2.8m Opening
