FAAC XP20 Photo Beams - Wireless, Wired OR BUS
1059-0011

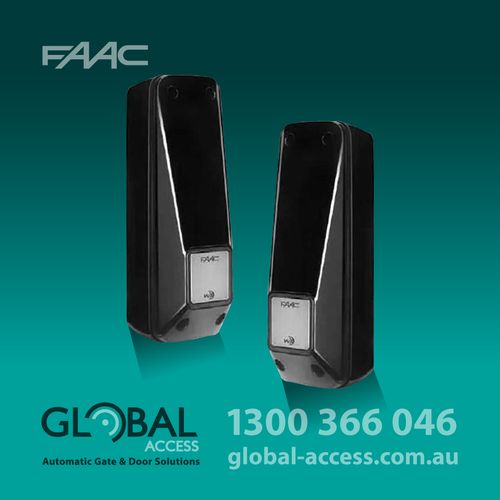

FAAC XP20 Photo Beams; Wireless, Hard Wired OR BUS
FAAC Mounted Photo Beams (Photo Electric / Photocells) Models:
• Wireless - 1059-0011
• Hard Wired - 1059-0024
• BUS - 1059-0005
Specifications:
• Sold as a pair (sender and receiver)

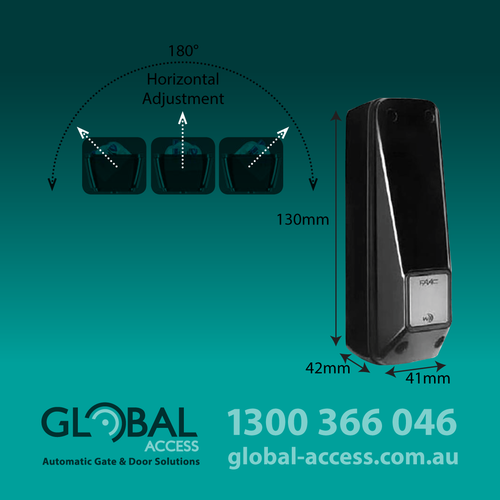

• 180°Horizontal Beam Adjustment
• 12/24v (AC/DC)
• Wireless + Hard Wired; 4 pairs of beams on the same system
• BUS; 16 pairs of beams on the same system
• Use 0.5mm² Cable to wire in
• Possibility for cable inlet from the back and the underside
• Obstacle Detection Time; Hard Wired: 13ms | Wireless: 40ms | BUS: 20ms
Range:
• Wireless = Max. 8m
• Hard Wired + BUS = Max. 20m
IMPORTANT NOTE:
WIRELESS BEAMS;
• You are still required to run a wire from one photo beam to the control box
• The other photo beam is wireless and is powered by 1 x CR2 3V battery (supplied)
• If connecting the wireless beams to an FAAC 'Standard' E024S Swing Gate Control Board, you will need to install an FAAC BUS Interface
Product Variations
Product Information
Product Specifications
Country of Origin:
BULGARIA
Dimensions:
130mm H x 41mm W x 42mm D
IP Rating:
IP54
Material:
Black Plastic
Power Consumption:
Absorbed Current; Hard Wired: Rx 20mA, Tx 20mA | Wireless: Rx 30mA, Tx 40mA (Battery Operated) or 5mA at 24V | BUS: Rx 10mA, Tx 10mA
Power Supply:
12/24v OR Battery operated transmitter - 3VCR2
