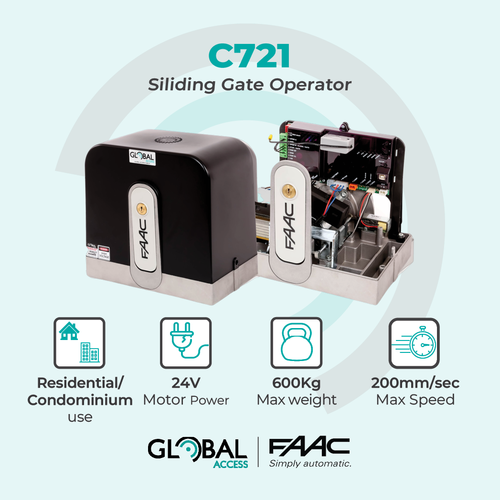

FAAC C721 24v Electric Sliding Gate Motor

1555-0005

Low-voltage gearmotor for residential sliding gates with max weight of 500Kg

  • Adjustable Open & Closing Speed
  • Virtual Encoder for reversal
  • Direct Drive & Easy Manual Release
  • New reduction principle with mobile axis (FAAC patent)
  • Capable of Continuous use
  • Electronic control board with anti-crushing device and virtual encoder with reversing function when detecting an obstacle
  • Magnetic limit stops
  • Vibration and noise reduction
  • Optional Transformer in separate box available when poser source is at a distance from the motor
  • Optional Solar Kit is available

Height to top of Pinion: Z28 = 123mm

Model Variants Available:

- 1.C721K 24v Sliding Gate Motor, 1 x Two Channel Receiver, 2 x Long Range Hand Transmitters, E721 Control Board.

- 1.C721K+TSB 24v Sliding Gate Motor, Transformer in Separate Enclosure, 1 x Two Channel Receiver, 2 x Long Range Hand Transmitters, E721 Control Board.

NOTE:
Gate requires a bottom rail of at least 100mm x 50mm
Bulk purchase quantity discounts apply, POA

Product Variations

Product Information

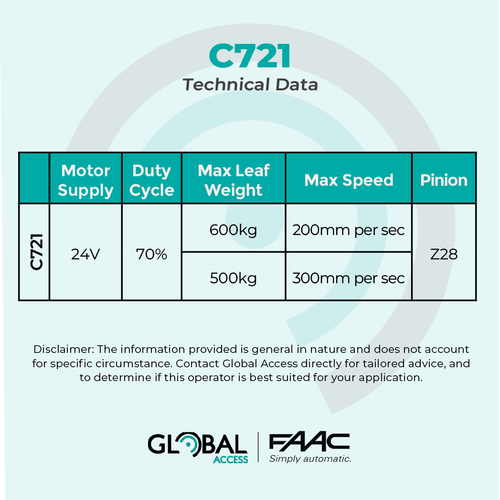

Product Specifications

Country of Origin:

ITALY

Dimensions:

Height to top of pinion: Z28 = 123mm

Important Notes:

We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

Maximum Gate Weight:

700Kg Max., 500Kg @300mm/sec

Motor Volts:

24v

Number of Daily Cycles:

70%

Pinion Size:

Z28

Height to top of pinion:

123mm

Usage:

Residential

Opening Speed:

Adjustable up to 300mm/sec


Product Downloads


Tags

FAAC
24v
Residential Use
Apartment Use
Slider

Disclaimer

A fee will be charged for the additional customisation or preparation of operators and/or accessories at the time of order.

Prices shown are ex-GST and Plus Freight, you must add GST & Freight to applicable orders.

Global Access advises that all automation systems should have the appropriate safety devices to protect pedestrians and vehicles.
This is mandatory for some operators, this is listed in the notes for the applicable products.
