Sliding Gate Motors

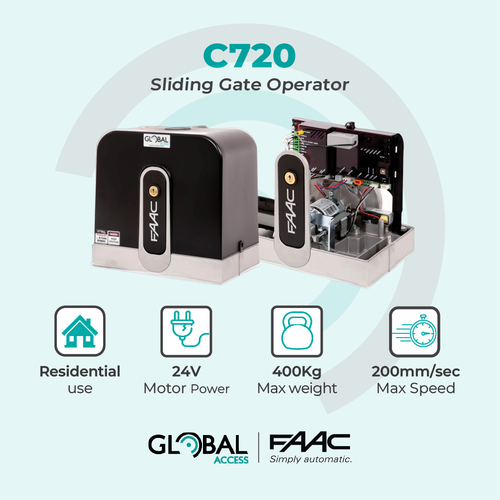

FAAC C720 24v Electric Sliding Gate Motor
1555-0004
FAAC C720 24v sliding gate motor for residential sliding gates with max. weight of 400Kg @ 200mm/sec
- Adjustable Open & Closing Speed
- Virtual Encoder for reversal
- Direct Drive & Easy Manual Release
- New reduction principle with mobile axis (FAAC patent)
- Capable of Continuous use
- Electronic control board with anti-crushing device and virtual encoder with reversing function when detecting an obstacle
- Magnetic limit stops
- Vibration and noise reduction
- Optional Transformer in separate box available when power source is at a distance from the motor
- Solar Friendly - Optional Solar Kit is available
- Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
Model Variants Available:
• 24v Sliding Gate Motor, 1 x Receiver, 2 x 2-button Transmitters, E721 Control Board
• 24v Sliding Gate Motor, Transformer in Separate Enclosure, 1 x Receiver, 2 x 2-button Transmitters, E721 Control Board
Optional Extras:
• Battery Backup for emergency egress: 6049-0373
• FAAC XP20 Wireless Photo Beams: 1059-0011
• FAAX XT2 (6049-0328) and XT4 (6049-0329) Transmitters
• Solar battery Input Lead - connect your solar battery setup directly to the E124 control board battery input: 1062-0023
NOTE:
• Gate requires a bottom rail of at least 100mm x 50mm
• Not suitable for gates on an incline!
Spare Parts:
• FAAC C720 Electromagnet (Solenoid)
• FAAC C720 Magnetic Limit Switch Stops
• FAAC C720 Lock Barrel and No.1 Key
Product Variations
Product Information

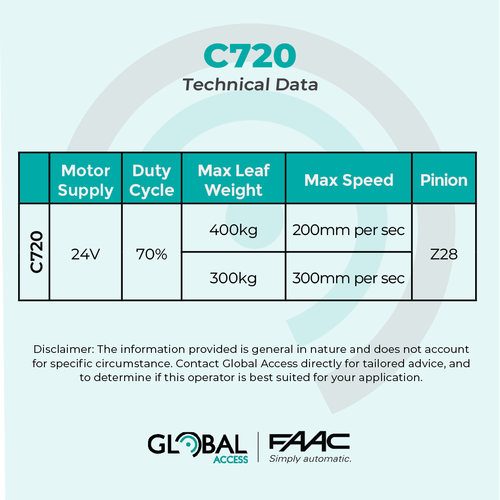

Product Specifications
Country of Origin:
EUROPE
Important Notes:
We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Recommended Maximum Gate Weight:
300Kg @ 300mm/sec | 400Kg @ 200mm/sec
Motor Volts:
24v
Duty Cycle:
70% Duty Cycle
Pinion Size:
Z28
Height to top of pinion:
123mm
Usage:
RESIDENTIAL
Opening Speed:
Adjustable up to 300mm/sec
