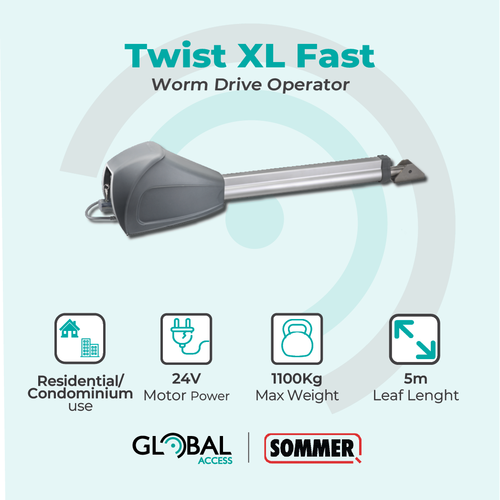

SOMMER TWIST XL FAST 24v Electric Swing Gate Motor | Fast & Powerful
1656-0097
SOMMER’s Twist XL Fast delivers on the same trusted features of the standard Twist XL, now with an increased speed, making them one of the fastest, highly powerful swing gate operators available on the market. Perfect for 24v, residential and condominium applications, particularly for wind loaded applications.
Choose between:
- Standard DT-A-1 Control Box (0.1Amp accessory power supply)
- XXL Control Box (1.5Amp accessory power supply) sizeable alternative for more demanding setups.
Key Features:
- Fast, powerful & reliable 24V motor
- High quality, German engineering
- Designed for heavy and wind loaded gates
- Patented gear-saving brake system withstands extreme force
- Easy installation with bolt-on brackets—no welding required
- Built-in, adjustable magnetic limit switches
- Automatic locking mechanism for added security
- Solar-compatible (requires voltage converter)
- External transformer options for applications without mains power
- Backup battery solution available via use of a dedicated UPS
What's Included:
- Twist XL Fast Operator
- Your choice of Standard or Large Control Box Kit
- 2x 2-Button Transmitters and a 2-Channel Receiver
Important Notes:
- The Twist XL Fast is not suitable for incline or rising gate applications
- Ground stops are strongly recommended in the open & close position
Contact Global Access today to get a tailored solution for your unique application.
Product Variations
Product Information
Product Specifications
Country of Origin:
GERMANY
Important Notes:
Lock required for leaves over 3m
IP Rating:
IP44
Recommended Maximum Gate Weight:
1100Kg @ 5m
Motor Volts:
24V
Duty Cycle:
40%
Power Consumption:
Max. Current Consumption Per Leaf: 1.2A
Power Supply:
24V
Thrust:
4500N
Usage:
Residential & Apartment
Strength Rating:
10
Opening Speed:
Total Stoke Travel Time = 15-23sec (including slow-down)
Cable Required:
Motor: 2 x 2.5mm² Limit Switches: 3 x 1.5mm²
Minimum Side Room:
200mm
Ground Stops Required:
Recommended, Has Built-in Limits
Maximum Gate Length:
5m
