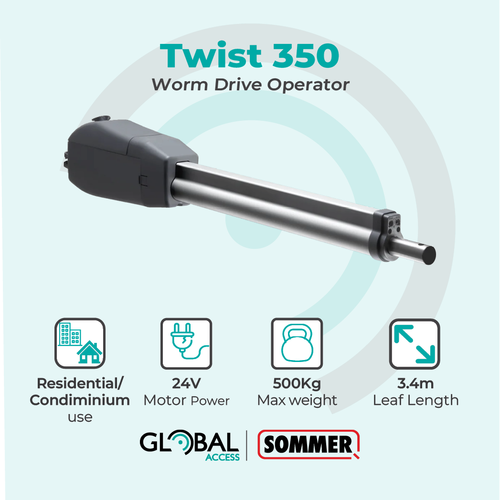

SOMMER TWIST 350 24v Electric Swing Gate Motor

1656-0073

[IN STOCK]

Fantastic solution for wind-loaded swing gates!

• Extremely powerful
• Premium, German Quality
• Simple installation and setup
• Patented braking system
• Strong tubular operator with long 450mm stroke
• Maximum of 120° Opening
• Suitable for heavy and/or wind loaded gates
160W 25Ah or 160W 40Ah Solar Kit available for applications where mains power isn't achievable

• Voltage Converter 24v to 36v is required for Solar Kits used with Twist 350 & Twist XL Kits

• Standard control board offers 0.1Amp accessory power supply
• Large (XXL) control board offers 1.5Amp accessory power supply
• OPTIONAL Backup Battery Solutions are available via use of a dedicated 24V UPS

IMPORTANT NOTES:
- Cannot be used for incline/rising gate applications!
- A ground stop is strongly recommended in the OPEN + CLOSED position
- All kits come with 1 x Two Channel Receiver, 2 x 4 Channel 434Mhz Transmitters
- The Large (XXL) Control Box is considerable larger than the Standard DT-A-1 Control Box

OPTIONAL ACCESSORIES

1074-0007: UPS 230v Professional with 100Amp Battery
5825-0019: 50mm Rear Bracket Spacer for Twist Range
5825-0020: 100mm Rear Bracket Spacer for Twist Range
5812-0003: Post Mounting Bracket for Raised Hinges - LEFT
5812-0004: Post Mounting Bracket for Raised Hinges - RIGHT
1062-0027:160W 25Ah Solar Kit
1062-0028:160W 40Ah Solar Kit

Product Variations

Product Information


Product Specifications

Country of Origin:

GERMANY

Important Notes:

Lock required for leaves over 2.5m

IP Rating:

IP44

Recommended Maximum Gate Weight:

500Kg @ 2m (per leaf) | 250Kg @ 3.4m (per leaf)

Duty Cycle:

40%

Power Consumption:

Max. Current Consumption Per Leaf: 1.5A

Power Supply:

24V

Thrust:

2,500N

Usage:

Residential | Apartment

Strength Rating:

9

Opening Speed:

Total Stoke Travel Time = 18-25sec (including slow-down)

Cable Required:

5 x 1.5mm²

Minimum Side Room:

120mm

Ground Stops Required:

Recommended, Has Built-in Limits

Maximum Gate Length:

3.4m
