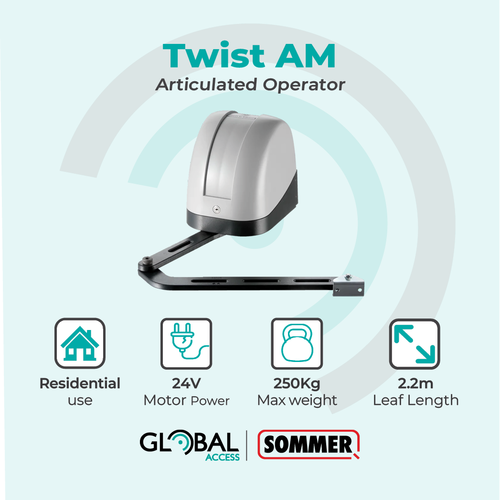

SOMMER TWIST AM 24v Electric Swing Gate Motor
1655-0072
The TWIST AM swing gate operator is suitable for open design gates with leaves up to 2m in length.
• Premium German Quality
• Easy to install and simple to setup
• Intelligent control unit that constantly adjusts the force required to operate the gate
• Automatic learning process - quick programming of end positions and operating forces
• Mechanical emergency release - lockable
• Auto reverse on contact
• Compact and quiet
• NO WELD installation
• Additional functions and adjustments can be made using the (optional) SOMLink device
IMPORTANT NOTES:
- TBA if suitable for solar applications!
- A ground stop is strongly recommended in the OPEN + CLOSED position
- All kits come with 1 x operator, 1 x gate post fitting, 1 x gate leaf fitting (U-shaped galvanised steel)
- 100mA accessory output, suitable for photo beams only
OPTIONAL ACCESSORIES
1879-0002:SOMLink Service Interface
5825-0022:Connecting Cable Set
5106-0020:Emergency Power Supply for Twist AM, Twist UG and SP900
Product Variations
Product Information
Product Specifications
Country of Origin:
GERMANY
Dimensions:
Motor Body = 220mm W x 260mm H x 280mm D
Important Notes:
Lock required for leaves over 3m
Recommended Maximum Gate Weight:
250Kg @ 2m
Motor Volts:
24V
Duty Cycle:
15%
Power Supply:
24V
Usage:
RESIDENTIAL (Only)
Strength Rating:
3
Cable Required:
5 x 1.5mm²
Minimum Side Room:
480mm
Ground Stops Required:
Has mechanical stops inbuilt
Maximum Gate Length:
2.5m
Product Downloads
Product Videos
Related Products
Tags
