Allmatic IRIS Photo Beams - Wireless with Battery
1059-0070

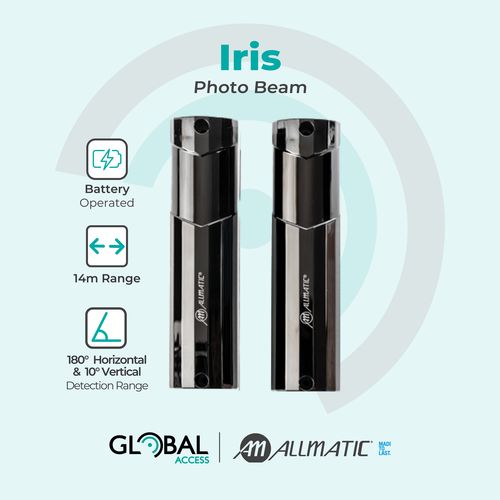

Allmatic IRIS Photo Beam – Wireless with Battery
- Sold as a pair (transmitter and receiver)
- 180°horizontal & 10° vertical beam adjustment
- Requires 2x AA Batteries (up to 2 years battery life)
- Capability to be set as Normally Open (NO) or Normally Closed (NC) outputs
- Pair up to 8 IRIS Photo Beams in Synchronised Mode by simply connecting 2 cables
- Sleek, compact design (35mW X 135mmH))
- A wire from one photo beam to the control box is required required, the other is operated via 2x AA batteries (batteries included)
RECCOMENDED ACCESSORIES
Enhance your IRIS Photo Beam:
Connect an NC Safety Edge that travels with the gate directly to the transmitter photo beam. This increases safety and simplifies its installation
IMPORTANT NOTE
- A 4-Core Security Wire is required to connect the receiver photo cell to the control board, the transmitter photo cell is operated via 2x AA batteries
Product Information
Product Specifications
Country of Origin:
ITALY
Dimensions:

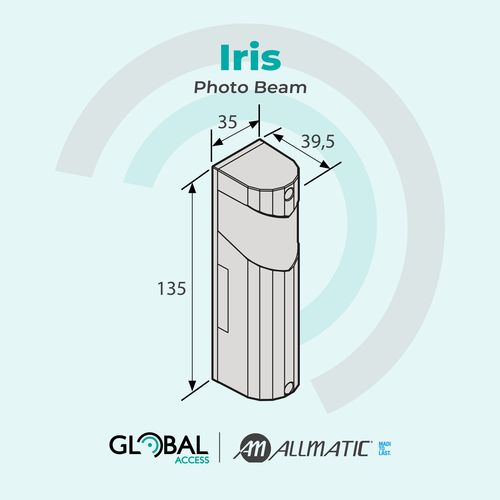

135mm H x 35mm W x 39.5mm D
IP Rating:
IP54
Material:
Black Plastic
Power Consumption:
Absorbed Current; 11mA at 24V DC
Power Supply:
12-35V AC/DC
