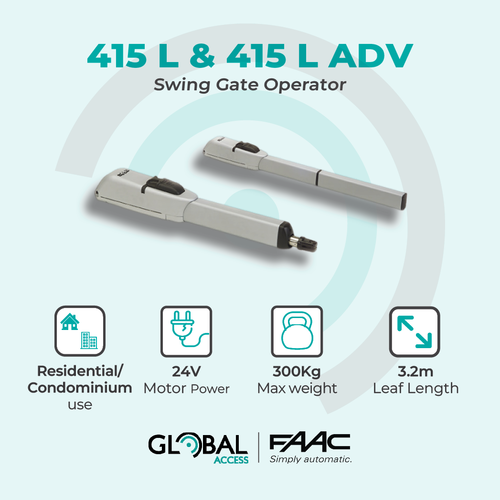

FAAC 415 Long 24v Electric Swing Gate Motor - STANDARD & ADVANCED
1656-0014
The FAAC 415 Long Swing Gate Operator are ideal for use on larger swing gates with leaves up to 3.2m in length.
• Solar Friendly (E024S Control Board Version) For Standard Variants Only
• 390mm Stroke
• Great for long and wind-loaded gates
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
STANDARD VARIANTS
DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E024S Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E024S Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
ADVANCED VARIANTS
DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
ADVANCED VARIANTS - WITH LIMIT SWITCHES
DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available
IMPORTANT NOTES
• Standard kits require physical ground stops in both open and closed positions!
Product Variations
Product Information
Product Specifications
Country of Origin:
ITALY
Important Notes:
We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Recommended Maximum Gate Weight:
STD: 280Kg @ 2m (Leaf Width) | ADV: 300Kg @ 2m (Leaf Width)
Motor Volts:
24v
Duty Cycle:
100%
Usage:
Residential & Apartment
Strength Rating:
STD = 6 | ADV = 7
Opening Speed:
STD = Total Stoke Travel Time = 24sec (including slow-down) | ADV = Total Stoke Travel Time = 21sec (including slow-down)
Cable Required:
Motor: 2 x 2.5mm² Limit Swithces: 3 x 1.5mm² Safecoder: 2 x 0.5mm² (shielded)
Minimum Side Room:
110mm
Ground Stops Required:
STD = YES | ADV = YES - Optional Safecoder Can Be Used
Maximum Gate Length:
STD & ADV 3.2m
