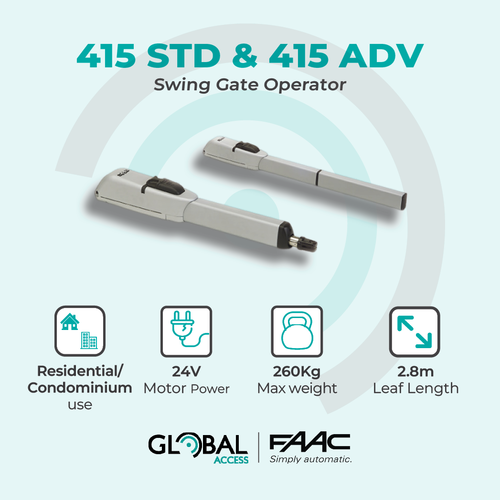

FAAC 415 24v Electric Swing Gate Motor - STANDARD & ADVANCED

1656-0015

The FAAC 415 Swing Gate Operator is fantastic for use on swing gates with leaves up to 2.8m in length

• Solar Kit Friendly
• 290mm Stroke
• Optional Encoder / Safecoder available
• Optional 'Protective' cover is available for the shaft / arm
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

STANDARD VARIANTS - Up to 25% Wind Loading

DOUBLE KIT:
1656-0007 - 2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E024S Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

SINGLE KIT:
1656-0015 1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E024S Control Board in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

ADVANCED VARIANTS - Up to 50% Wind Loading

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

ADVANCED VARIANTS - WITH LIMIT SWITCHES - Up to 25% Wind Loading

DOUBLE KIT:
2 x 24v 415 actuators, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

SINGLE KIT:
1 x 24v 415 actuator, 1 x Two Channel Receiver, 2 x Long Range Transmitters, E124 Control Board (with Advanced Features) in ABS Box, 1 x High Powered Aerial & 230v plug
Optional Transformer in Separate Enclosure is available

IMPORTANT NOTES

• Standard kits require physical ground stops in both open and closed positions!
• Advanced kits require Limit Switches OR Safecoder

OPTIONAL ACCESSORIES

1059-0010 BUS Interface for use with Photo Beams
6049-0373 Battery Backup (24V) for emergency egress, with 1.8Ah Battery
6049-0340 Safecoder

Product Variations

Product Information

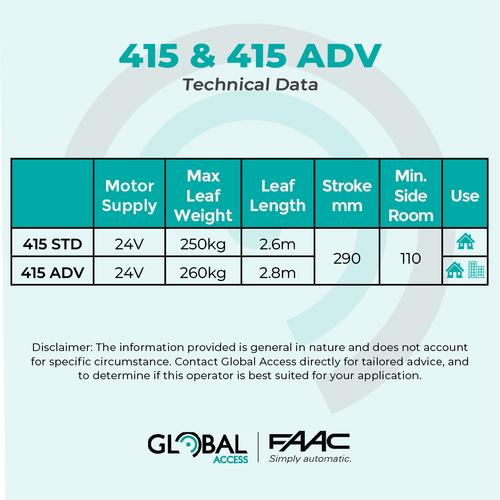

Product Specifications

Country of Origin:

ITALY

Important Notes:

We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

Recommended Maximum Gate Weight:

STD: 250Kg @ 2m (Leaf Width) | ADV: 260Kg @ 2m (Leaf Width)

Motor Volts:

24v

Duty Cycle:

100%

Usage:

RESIDENTIAL | CONDOMINIUM

Strength Rating:

STD = 5 | ADV = 6

Opening Speed:

Total Stoke Travel Time = 18sec (including slow-down)

Cable Required:

Motor: 2 x 2.5mm² Limit Swithces: 3 x 1.5mm² Encoder / Safecoder: 2 x 0.5mm²

Minimum Side Room:

110mm

Ground Stops Required:

STD = YES | ADV = YES - Optional Safecoder Can Be Used

Maximum Gate Length:

STD & ADV 2.6m
