Swing Gate Motors

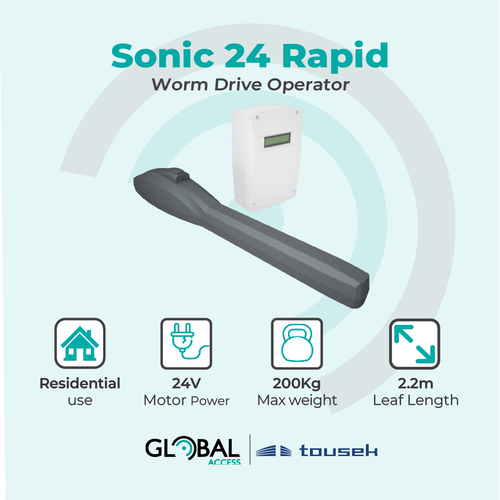

TOUSEK SONIC 24 RAPID 24v Electric Swing Gate Motor
1656-0090
The TOUSEK SONIC 24 RAPID swing gate operator is suitable for lightweight, open design gates with leaves up to 2m in length.
- Simple Installation and Setup
- Powerful Premium Austrian Quality
- 380mm stroke
- Crazy 11 second open and close speeds @ 90°
- Encapsulated gear
- Built-in mechanical stops - Max. 2m wide gate, very light wind-load

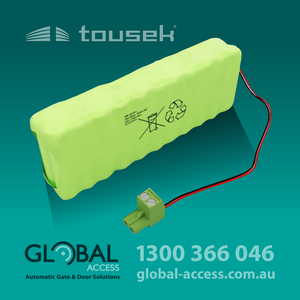

- Optional Emergency Battery Option
- Maglock or Virolock are the required locking options
- Included Bolt-on, NO WELD mounting brackets
- Max. 500mA accessory power output
- Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
ALL KITS INCLUDE:
• Sonic operator, control board, bolt-on brackets, 2 x 2-button transmitters and a 2-channel receiver and a range increasing antenna
• Stops for open + closed positions
OPTIONS:
• Emergency Battery Option
• 50mm OR 100mm Rear Bracket Mount Spacers
IMPORTANT NOTE:
• Not suitable for wind-loaded, closed construction gates
• Suitable only for open construction gates
Product Variations
Product Information
Product Specifications
Country of Origin:
AUSTRIA
Recommended Maximum Gate Weight:
250Kg @ 2m (Leaf Width)
Motor Volts:
24v
Duty Cycle:
40%
Opening:
110° Opening Angle
Torque:
2000N
Usage:
RESIDENTIAL
Strength Rating:
3
Opening Speed:
Total Stoke Travel Time = 11sec (including slow-down)
Cable Required:
4 x 1.5mm²
Minimum Side Room:
150mm
Ground Stops Required:
Built-in Mechanical Stops
Maximum Gate Length:
2m Opening
Product Downloads
Product Videos
Related Products
Tags
