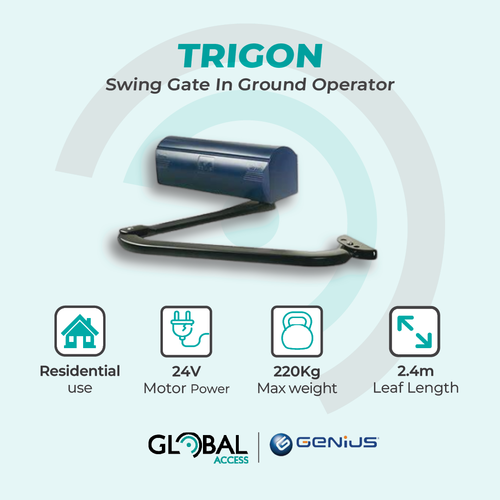

GENIUS Trigon 24v Electric Swing Gate Motor

1655-0030

The GENIUS Trigon Electric Swing Operator is suitable for a single leaf up to 2.4m. [OUT OF STOCK]

Strong Motor, Easy to Install, includes the arms in the box, Brain 15 Control Board with Virtual Encoder function providing the end-user with a reverse on contact safety feature. Easy release with a customised key enables the leaf to be moved by hand in the event of a power outage.

• Solar friendly
• No weld installation
• OPTIONAL Extended Arm [5704-0002] for Leaves longer than 2m
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

VARIANTS

DOUBLE KIT:
2 x 24v Trigon articulated actuators, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug

SINGLE KIT:
1 x 24v Trigon articulated actuator, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug

IMPORTANT NOTE

• Physical ground stops are required in both open and closed positions!

Product Variations

Product Information


Product Specifications

Country of Origin:

EUROPE

Important Notes:

We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

Recommended Maximum Gate Weight:

220Kg @ 2m

Motor Volts:

24v

Duty Cycle:

100%

Opening:

Max. 120° Opening Angle

Power Supply:

24V

Usage:

RESIDENTIAL

Strength Rating:

4

Cable Required:

2 x 2.5mm²

Minimum Side Room:

450mm

Ground Stops Required:

YES

Maximum Gate Length:

2m Opening
