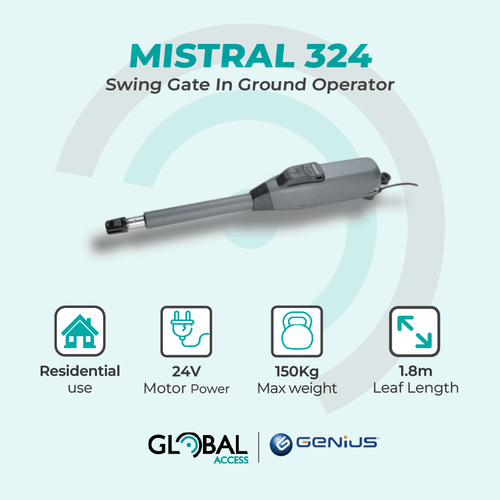

GENIUS Mistral 324 ENV 24v Electric Swing Gate Motor
1655-0024
The MISTRAL 324 swing gate operator is suitable for open design gates with leaves up to 1.8m in length.
• Irreversible Electro-Mechanical Motor
• Quiet & Fast
• Stainless Steel Tube
• Aluminium Body
• Offers 300mm of stroke
• Use BUS interface on the Brain 15 Control board when connecting Wireless Photo Beams
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
VARIANTS
DOUBLE KIT:
1655-0023 - 2 x 24v Mistral 324 actuators, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
1655-0048 - 2 x 24v Mistral 324 actuators, Brain 15 Control Board for 24v operators with External Transformer, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
SINGLE KIT:
1655-0024 - 1 x 24v Mistral 324 actuator, Brain 15 Control Board for 24v operators, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
1655-0047 - 1 x 24v Mistral 324 actuator, Brain 15 Control Board for 24v operators with External Transformer, 1 x Receiver, 2 x Echo Hand Transmitters & 230v plug
IMPORTANT NOTE
• Front & Rear Brackets require welding!
• Physical ground stops are required in both open and closed positions!
Product Variations
Product Information
Product Specifications
Important Notes:
We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Recommended Maximum Gate Weight:
150Kg @ 2m
Motor Volts:
24v
Duty Cycle:
40%
Strength Rating:
2
Opening Speed:
Total Stoke Travel Time = 20sec (not including slow-down)
Cable Required:
2 x 2.5mm²
Minimum Side Room:
100mm
Ground Stops Required:
YES
Maximum Gate Length:
1.8m
