Swing Gate Motors

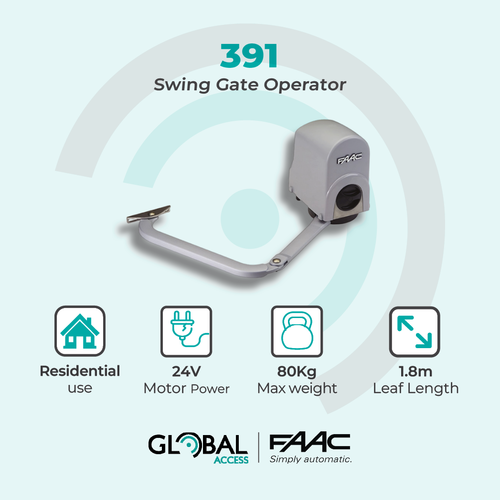

FAAC 391 24v Electric Swing Gate Motor - STANDARD & ADVANCED
1655-0008
The FAAC 391 Swing Gate Operator is fantastic for use on swing gates with leaves up to 1.8m in length.
- Integrated control board, open & closed mechanical stops
- Auto learning, anti-crushing
- Adjustable Speed and Anti-Wind
- Auto reverse on contact
- Low side-room kit available (LSK)
- Has built in stops
- Only Standard Variants are Solar Friendly
- No weld installation
- Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
STANDARD VARIANTS
DOUBLE KIT:
2 x 24v 391 articulated actuators, 1 x Two Channel Global Receiver, 2 x FAAC XT2 2-Button Transmitters, E024S Control Board in ABS Box & 230v plug
SINGLE KIT:
1 x 24v 391 articulated actuator, 1 x Two Channel Global Receiver, 2 x FAAC XT2 2-Button Transmitters, E024S Control Board in ABS Box & 230v plug
- Battery Backup to suit E024S Control Board: 6049-0373
- BUS Interface: 1059-0010
ADVANCED VARIANTS
DOUBLE KIT: 2 x 24v 391 articulated actuators, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Global Receiver, 2 x FAAC XT2 2-Button Transmitters
SINGLE KIT: 1 x 24v 391 articulated actuator, E124 Control Board (with Advanced Features) in ABS Box, 1 x Two Channel Global Receiver, 2 x FAAC XT2 XT2 2-Button Transmitters
- Battery Backup to suit E124 Control Board: 5106-0011
Product Variations
Product Information
Product Specifications
Country of Origin:
ITALY
Important Notes:
We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Recommended Maximum Gate Weight:
80Kg @ 1.6m (Leaf Width)
Motor Volts:
24v
Duty Cycle:
40%
Opening:
Max. 120° Opening Angle
Usage:
RESIDENTIAL (Only)
Strength Rating:
1
Cable Required:
2 x 2.0mm²
Minimum Side Room:
STD 450mm | LSK 220mm (Optional Low Side-Room Kit available)
Ground Stops Required:
Has mechanical stops inbuilt
Maximum Gate Length:
1.6m
