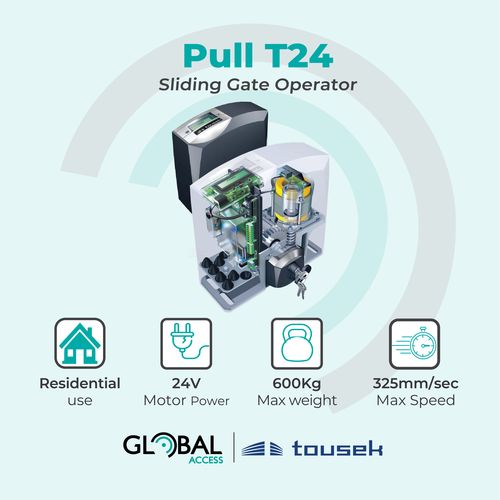

TOUSEK Pull T24 Speed Electric Sliding Gate Motors

1555-0032

This premium quality TOUSEK Pull T24 Speed is suitable gates weighing up to 600Kg.

The Pull T24 are European (Austrian) designed and manufactured oil-bath gearbox operator like no other when it comes to design and quality of build!

• Low power consumption in idle mode (Optional)
Backup battery (Recommended with all Standard and Separate Transformer Kits)
• Self learning limit detection
• Automatic reversal system
• Adjustable soft stops
• Modern sleek style
• Included adjustable base plate
• No limit switches
• Machine cut hardened steel gears
• Oil bath gear box
• Digital display cover
• Kit includes adjustable height base (mounting) plate
• Only suitable for very slight (small) inclines, please contact us to discuss your application!
• Incline gates MUST use an Add-On Receiver and a battery pack!
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

VARIATIONS AVAILABLE:
1555-0032 - Z16 Pinion - Max. Weight 600Kgs - Max. Speed 216mm/s
1555-0033 - External Transformer - Z16 Pinion - Max. Weight 600Kgs - Max. Speed 216mm/s
1555-0030 - Z20 Pinion - Max. Weight 400Kgs - Max. Speed 270mm/s
1555-0031 - External Transformer - Z20 Pinion - Max. Weight 400Kgs - Max. Speed 270mm/s
1555-0028 - Z24 Pinion - Max. Weight 300Kgs - Max. Speed 325mm/s
1555-0029 - External Transformer - Z24 Pinion - Max. Weight 300Kgs - Max. Speed 325mm/s

OPTIONAL EXTRAS:
1018-0217 - Tousek Radio Gear Package 1 x ADD-ON Receiver and 2 x transmitters
5151-0010 - DIN Rail Power Supply 24V 620mA
1018-0102 - Plug-in Courtyard Lamp Module (230V, 100W)
1018-0101 - Plug-in Gate Status Module
• Pull T24 Solar Ready Connection

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - TOUSEK Radio Kit
• Max. 256 Transmitters can be paired to this receiver
• Board accessory output is 24V 500mA

Product Variations

Product Information

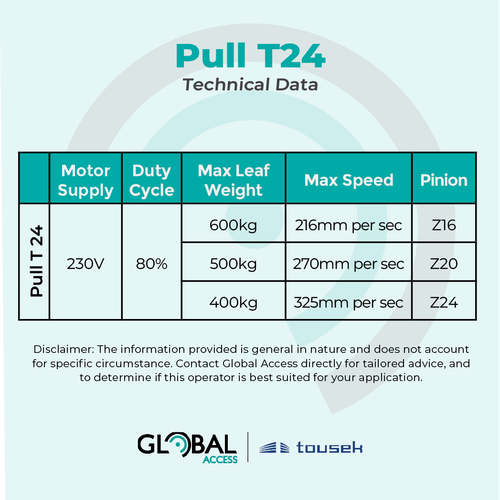

Product Specifications

Country of Origin:

AUSTRIA

Dimensions:

316mm W x 307mm H x 207mm D

Recommended Maximum Gate Weight:

Pull T24 - Z24 = 300Kg | Pull T24 - Z20 = 400Kg | Pull T24 - Z16 = 600Kg

Motor Volts:

24V

Duty Cycle:

80% Duty Cycle

Pinion Size:

Z24 Mod 4 | Z20 Mod 4 | Z16 Mod 4

Height to top of pinion:

Z24 = 115mm, plus base plate = 121mm | Z20 = 107mm, plus base plate = 113mm | Z16 = 99mm, plus base plate = 105mm

Usage:

RESIDENTIAL | CONDOMINIUM

Opening Speed:

Pull T24 - Z24 = 19.5m/min 325mm/sec | Pull T24 - Z20 = 16.2m/min 270mm/sec | Pull T24 - Z16 = 12.96m/min 216mm/sec

Closing Speed:

Pull T24 - Z24 = 19.5m/min 325mm/sec | Pull T24 - Z20 = 16.2m/min 270mm/sec | Pull T24 - Z16 = 12.96m/min 216mm/sec

Ground Stops Required:

YES
