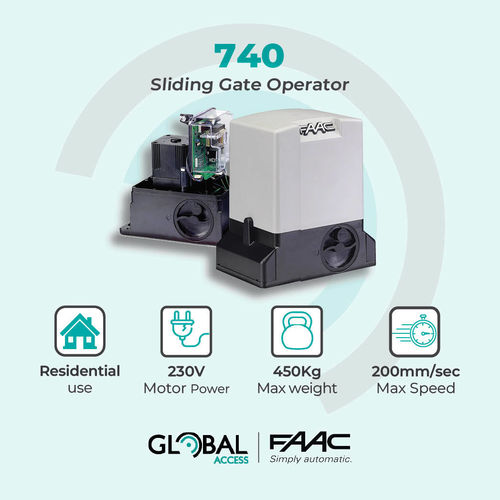

FAAC 740 230v Electric Sliding Gate Motor

1556-0001

The FAAC 740 230V gearmotor for sliding gates with max. weight of 400Kg

Available with OR without an encoder for reversal.

• Quick and easy installation thanks to the built-in, pre-wired control unit
• Anti-crushing protection is ensured by an electronic device directly controlling drive torque
• As the gearmotor is non reversing, no electric locks need be installed
• In the event of power failure, the rotation release device –
protected by key – makes it possible to open and close the gate manually
• Has an Advanced 740D Control Board
• Simplified “on display” programming
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

Model Variants Available:

• 740 Slider, WITH ENCODER for Reversal
Z16 Pinion - 400kg Max. Weight - 230v - 40 Cycles per hour - 200mm/sec
1x Receiver, 2x Long Range Hand Transmitters, Advanced 740D Control Board with Encoder for Reversal

• 740 Slider, WITHOUT ENCODER
Z16 Pinion - 400kg Max. Weight - 230v - 30 Cycles per hour - 200mm/sec
1x Receiver, 2x Long Range Hand Transmitters, Advanced 740D Control Board

Optional Accessories:

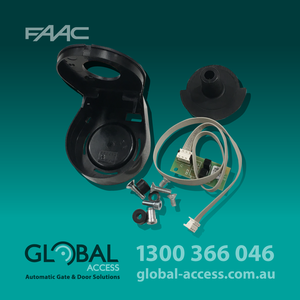

Optional Encoder for Obstacle Detection
UPS 230V Professional Series with 100Ah Battery

Spare Parts:
FAAC 740 Magnetic Limit Switch Reader
FAAC 740 Magnetic Limit Switch Stops

Product Variations

Product Information


Product Specifications

Country of Origin:

EUROPE

Dimensions:

295mm L x 221mm D x 322mm H

Important Notes:

Important Notes: We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

IP Rating:

IP44

Recommended Maximum Gate Weight:

400Kg

Motor Volts:

230v

Duty Cycle:

30% Duty Cycle

Pinion Size:

Z16

Height to top of pinion:

79mm

Power Consumption:

350W 1.5A

Power Supply:

230V

Thrust:

350N

Torque:

Max. 18Nm

Usage:

RESIDENTIAL

Opening Speed:

200mm/sec

Closing Speed:

200mm/sec

Product Weight:

10Kg
