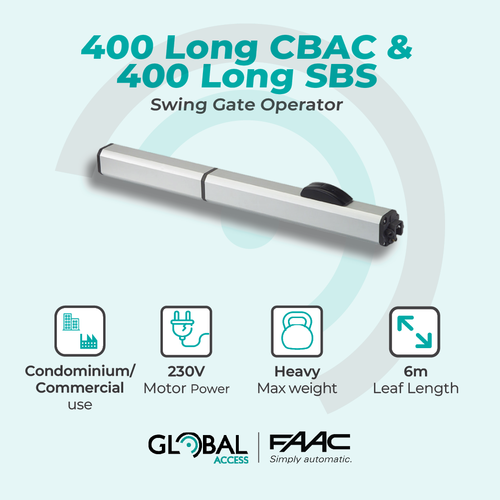

FAAC 400 Long CBAC / SBS 230v Hydraulic Swing Gate Motor
1616-0003
The FAAC 400 Long Swing Gate Operator is fantastic for use on swing gates with leaves up to 6m in length (SBS version).
Gates up to 2.2m internal lock open and closed (CBAC).
Gates up to 6m no internal locks (SBS) must be fitted with a lock.
• Pump Litres Per Minute: CBAC = 1.5L/min SBS = 0.75L/min
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
HYDRAULIC CBAC KITS
DOUBLE KIT:
230v 400 CBAC Long 2 x Lock Open & Closed Hydraulic Actuators, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 2 x Safecoders.
SINGLE KIT:
230v 400 CBAC Long 1 x Lock Open & Closed Hydraulic Actuator, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 1 x Safecoder.
HYDRAULIC SBS KITS
DOUBLE KIT:
230v 400 SBS Long 2 x NO LOCK Hydraulic Actuators, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 2 x Safecoders.
SINGLE KIT:
230v 400 SBS Long 1 x NO LOCK Hydraulic Actuator, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 1 x Safecoder.
IMPORTANT NOTES
• Optional physical ground stops required in both open and closed positions!
• If no ground stops are used, included Safecoders must be used
Product Variations
Product Information

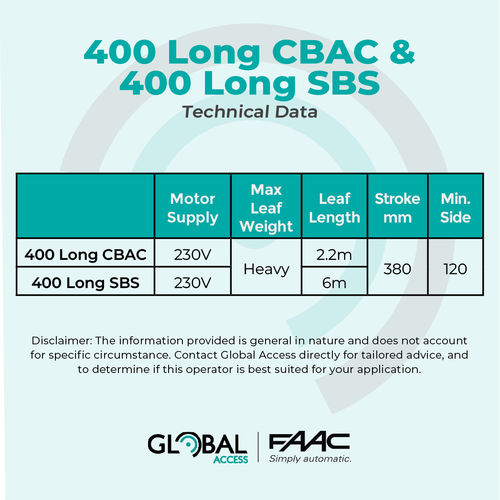

Product Specifications
Country of Origin:
ITALY
Important Notes:
We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Motor Volts:
230V
Duty Cycle:
CBAC = 50% SBS = 40%
Torque:
CBAC = 465 daN | SBS = 775 daN
Usage:
COMMERCIAL
Strength Rating:
10
Opening Speed:
Total Stoke Travel Time; CBAC = 25sec (including slow-down) | SBS = 50sec (including slow-down)
Cable Required:
Motor: 4 x 1.5mm² Safecoder: 2 x 0.5mm² Shielded
Minimum Side Room:
120mm
Ground Stops Required:
YES
Pump Litres Per Minute:
CBAC = 1.5L/min | SBS = 0.75L/min
Maximum Gate Length:
CBAC = 2.2m | SBS = 6m
