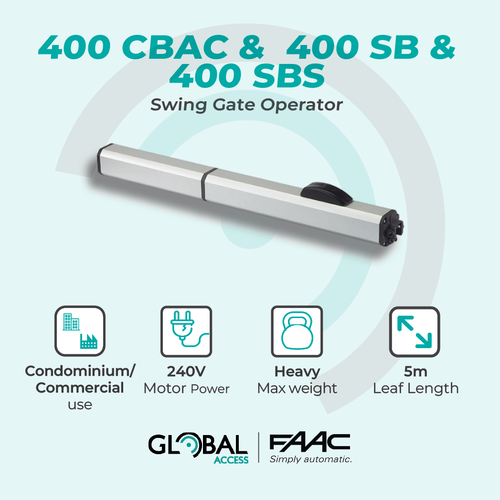

FAAC 400 CBAC / SB & SBS 230v Hydraulic Swing Gate Motor
1616-0002
The FAAC 400 Swing Gate Operator suits leaves up to 5m in length.
- Gates up to 2.2m internal lock open and closed (CBAC).
- Gates up to 4m no internal locks (SB) must be fitted with a lock.
- Gates up to 6m no internal locks (SBS) must be fitted with a lock.
• Pump Litres Per Minute: CBAC = 1.5L/min SB = 1L/min SBS = 0.75L/min
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
HYDRAULIC 2.2m CBAC KITS
DOUBLE KIT:
230v 400 CBAC Long 2 x Lock Open & Closed Hydraulic Actuators, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 2 x Safecoders.
SINGLE KIT:
230v 400 CBAC Long 1 x Lock Open & Closed Hydraulic Actuator, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 1 x Safecoder.
HYDRAULIC 4m SB KITS
DOUBLE KIT:
230v 400 SB 2 x NO LOCK Hydraulic Actuators, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 2 x Safecoders.
SINGLE KIT:
230v 400 SB Long 1 x NO LOCK Hydraulic Actuator, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 1 x Safecoder.
HYDRAULIC 6m SBS KITS
DOUBLE KIT:
230v 400 SBS 2 x NO LOCK Hydraulic Actuators, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 2 x Safecoders.
SINGLE KIT:
230v 400 SBS Long 1 x NO LOCK Hydraulic Actuator, 1 x Single Channel Receiver, 2 x Long Range Transmitters, E145 Control Board (with Advanced Features) with deceleration in open/close, 1 x High Powered Aerial & 230v plug. Includes 1 x Safecoder.
IMPORTANT NOTES
• Optional physical ground stops required in both open and closed positions!
• If no ground stops are used, included Safecoders must be used
Product Variations
Product Information
Product Specifications
Country of Origin:
ITALY
Important Notes:
We recommend gates over 1.8m be fitted with an electric lock. We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Motor Volts:
230V
Duty Cycle:
CBAC = 70% SB = 70% SBS = 50%
Opening:
CBAC - Single Leaf Gate: Up to 2.2m Max. per leaf, SB - Single Leaf Gate: Up to 4m Max. with a lock, SBS - Single Leaf Gate: Up to 6m Max. with a lock
Torque:
CBAC = 0÷620 daN SB = 0÷620 daN SBS = 0÷775 daN
Usage:
COMMERCIAL
Strength Rating:
10
Opening Speed:
Total Stoke Travel Time; CBAC = 26sec (including slow-down) | SB = 26sec (including slow-down) | SBS = 34sec (including slow-down)
Cable Required:
Motor: 4 x 1.5mm² Safecoder: 2 x 0.5mm²
Minimum Side Room:
120mm
Ground Stops Required:
YES
Maximum Gate Length:
CBAC = 2.2m | SB = 4m | SBS = 5m
