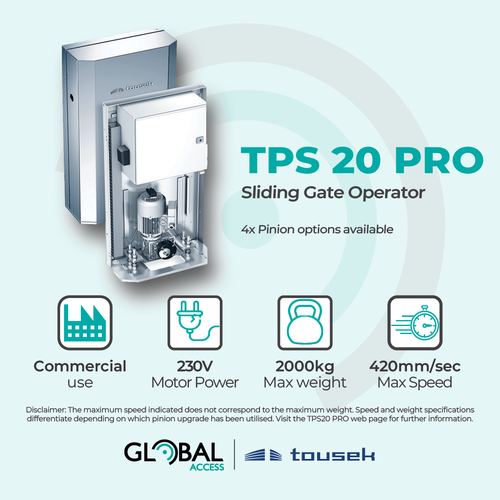

TOUSEK TPS 20 PRO 230v Electric Sliding Gate Motor
1516-0039
The premium quality TOUSEK TPS 20 PRO sliding gate motor is suitable for commercial gates weighing up to 2000Kg. These european (Austrian) designed and manufactured oil-bath gearbox operator are like no other when it comes to design and quality of build!
- Large illuminated LC-Display
- Clear text menu programmable via four buttons
- Distance measurement with speed sensor
- Adjustable soft stop
- Automatic reversal system
- Mechanical brake for safe gate stop
- Permanent self-regulating force with boost function
- Electronic monitoring of emergency release
- Input for gate back area surveillance
- Suitable for traffic control operation
- Status display for safety and buttons/switches inputs
- Mechanical brake for safe gate stop
- 1.5 amp accessory power supply
- Available as a Master/Slave combination for bi-parting gates
- Included DIN Rail 30W 24V 1.5Amp Power Supply
- Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
SPEED / WEIGHT SPECIFICATIONS:
• Z15 Pinion - Max. 2000Kg - 233mm/sec
• Z20 Pinion - Max. 1200Kg - 300mm/sec
• Z24 Pinion - Max. 800Kg - 360mm/sec
PINION HEIGHT [Ground to top of pinion]:
• TPS 20 PRO - Z15 = Adjustable from 163 - 243mm (80mm of adjustment)
IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - TOUSEK Radio Kit
• Only One (1) optional genuine Tousek module can be fitted to the control board
Product Variations
Product Information
Product Specifications
Country of Origin:
AUSTRIA
Dimensions:
TPS 20 PRO = 520 x 995 x 230 mm
Recommended Maximum Gate Weight:
2000kg
Motor Volts:
230v
Duty Cycle:
80% S3
Pinion Size:
Z15, Mod 4
Height to top of pinion:
TPS 20 PRO - Z15 = Adjustable height from 163 - 243mm
Torque:
45Nm
Weight Capacity:
Max. 2000Kg
Opening Speed:
Z15 Pinion = 13.98m/min 233mm/sec | Z20 Pinion = 18m/min 300mm/sec | Z24 Pinion= 21.6m/min 360mm sec
Closing Speed:
Z15 Pinion = 13.98m/min 233mm/sec | Z20 Pinion = 18m/min 300mm/sec | Z24 Pinion= 21.6m/min 360mm sec
Ground Stops Required:
YES
