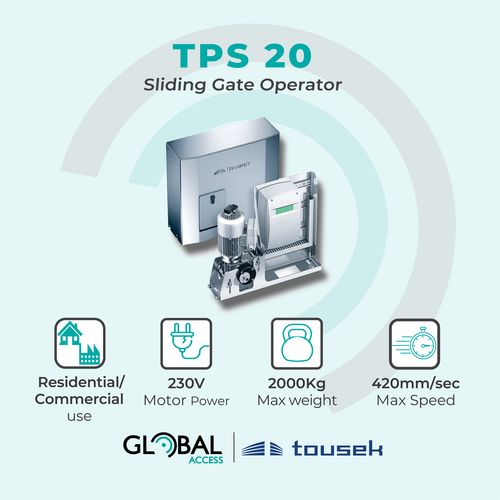

TOUSEK TPS 20 230v Electric Sliding Gate Motors

1516-0037

The premium quality TOUSEK TPS 20 range of sliding gate motor are suitable for gates weighing up to 2000Kg. These European (Austrian) designed and manufactured oil-bath gearbox operator are like no other when it comes to design and quality of build!

  • Large illuminated LC-Display
  • Clear text menu programmable via four buttons
  • Distance measurement with speed sensor
  • Adjustable soft stop
  • Automatic reversal system
  • Mechanical brake for safe gate stop
  • Permanent self-regulating force with boost function
  • Electronic monitoring of emergency release
  • Input for gate back area surveillance
  • Suitable for traffic control operation
  • Status display for safety and buttons/switches inputs
  • Mechanical brake for safe gate stop
  • 1.5 amp accessory power supply
  • Ask us about TPS 20 Master/Slave combination for bi-parting gates
  • Included DIN Rail 30W 24V 1.5Amp Power Supply
  • Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
  • A larger cabinet version TPS 20 PRO is also available

SPEED / WEIGHT SPECIFICATIONS:
• Z15 Pinion - Max. 2000Kg - 233mm/sec
• Z20 Pinion - Max. 1200Kg - 300mm/sec
• Z24 Pinion - Max. 600Kg - 360mm/sec
• Z28 Pinion - Max. 400Kg - 420mm/sec

PINION HEIGHT [Ground to top of pinion]:
• TPS 20 - Z15 = Adjustable from 144 - 219mm (75mm of adjustment)

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - TOUSEK Radio Kit or GLOBAL Radio Kit
• Only One (1) optional genuine Tousek module can be fitted to the control board

Product Variations

Product Information


Product Specifications

Country of Origin:

AUSTRIA

Dimensions:

TPS 20 = 610 x 530 x 211 mm

Recommended Maximum Gate Weight:

2000kg

Motor Volts:

230v

Duty Cycle:

80% S3

Pinion Size:

Z15, Mod 4

Height to top of pinion:

TPS 20 - Z15 = Adjustable height from 144 - 219mm

Torque:

45Nm

Weight Capacity:

Max. 2000Kg

Opening Speed:

Z15 Pinion = 13.98m/min 233mm/sec | Z20 Pinion = 18m/min 300mm/sec | Z24 Pinion= 21.6m/min 360mm sec

Closing Speed:

Z15 Pinion = 13.98m/min 233mm/sec | Z20 Pinion = 18m/min 300mm/sec | Z24 Pinion= 21.6m/min 360mm sec

Ground Stops Required:

YES
