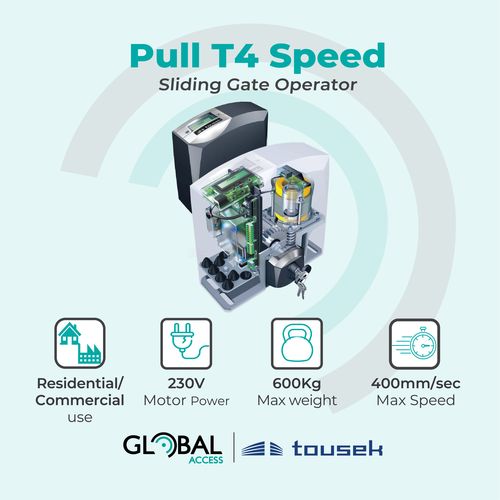

TOUSEK Pull T4 SPEED 230v Electric Sliding Gate Motors
1555-0020
The TOUSEK Pull T4 SPEED oil-bath gearmotor are perfect for sliding gates up to 600Kg.
• Large illuminated LC Display
• At reduced rotation speed, no loss of force
• Self learning limit detection (built-in encoder)
• Modern sleek style
• Automatic reversal system
• No limit switches
• Adjustable soft stops
• Adjustable base plate
• Machine cut hardened steel gears
• Oil bath gear box
• Digital display cover
• Accessory voltage 12VDC 200mAh
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
VARIATIONS AVAILABLE:
• 1555-0020 - Z16 Pinion - Max. Weight 600Kgs - Max. Speed 292mm/s
• 1555-0034 - Z20 Pinion - Max. Weight 400Kgs - Max. Speed 366mm/s
• 1555-0035 - Z24 Pinion - Max. Weight 300Kgs - Max. Speed 400mm/s
OPTIONAL EXTRAS:
• Radio Gear Packages; 1 x Plug-in Receiver and 2 x transmitters
• DIN Rail Power Supply 15W 12V 1.25A
• Plug-in Courtyard Lamp Module (230V, 100W)
• Plug-in Gate Status Module
IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - TOUSEK Radio Kit
• Accessory output is 200mA, suitable for maybe 1- 2 accessories only
Product Variations
Product Information

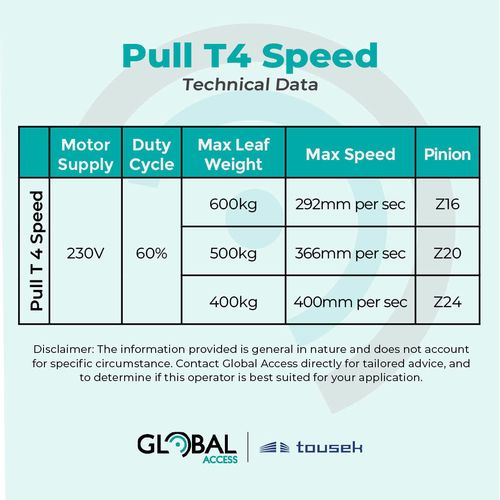

Product Specifications
Country of Origin:
AUSTRIA
Dimensions:
316mm W x 307mm H x 207mm D
Recommended Maximum Gate Weight:
Z16 = 600Kg | Z20 = 400Kg | Z24 = 300Kg
Motor Volts:
230V
Duty Cycle:
60% Duty Cycle
Pinion Size:
Z16 Mod 4 | Z20 Mod 4 | Z24 Mod 4
Height to top of pinion:
Z16 = 99mm, plus base plate = 105mm
Power Supply:
230v
Usage:
RESIDENTIAL | CONDOMINIUM
Weight Capacity:
Z16 = 700Kg | Z20 = 600Kg | Z24 = 400Kg
Opening Speed:
Z16 = 17.5m/min 292mm/sec | Z20 = 22m/min 366mm/sec | Z24 = 24m/min 400mm/sec
Closing Speed:
Z16 = 17.5m/min 292mm/sec | Z20 = 22m/min 366mm/sec | Z24 = 24m/min 400mm/sec
Ground Stops Required:
YES
