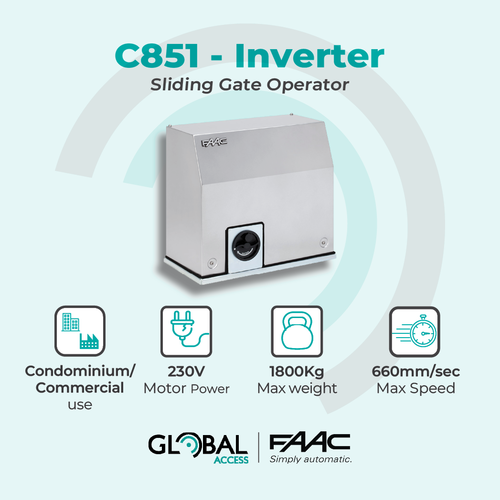

The FAAC C851 is an Industrial (Commercial) sliding gate gearmotor, with 100% Duty Cycle, and is suitable for gate up to 1800Kg.

• Speed programming via integrated frequency inverter on the E850S control board
• Operates industrial sliding gates weighing up to 1800Kg with a speed (adjustable) up to 0.66 m/s and a maximum recommended length of 20m
• Ideal for stores, warehouses, malls, prisons, embassies, or any application in which Fast Operation and Continuous Duty (100%) can be requested
• Powerful gearmotor: 1.1KW irreversible gearmotor + electric brake
• 1.1KW Frequency Inverter easy speed programming of:
  - Running speed
  - Deceleration speed
  - Rump-up time (acceleration)
  - Rump-down time (deceleration)
• Built-in loop detectors
• Integrated full feature control panel protected by a metal housing and plastic transparent cover
• 4 Integrated limit-switches
• 5mm hot dipped galvanised steel operator’s base with 5 fixing points
• Slot holes and height adjustment pins to permit full operator’s position adjustment
• 1.5mm steel cover with zinc primer protection treatment plus powder coated painting
• In the event of power failure an easy manual release operation makes it possible to move the gate manually. The manual release device can be activated from the outside of the operator without removing the cover
• Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

IMPORTANT NOTE:
• Safety devices such as photo beams MUST be used on these models!
• Kits do not contain radio gear or remotes
• Chain Drive C851 uses; 8B gauge chain (NOT INCLUDED IN THIS KIT, available elsewhere)

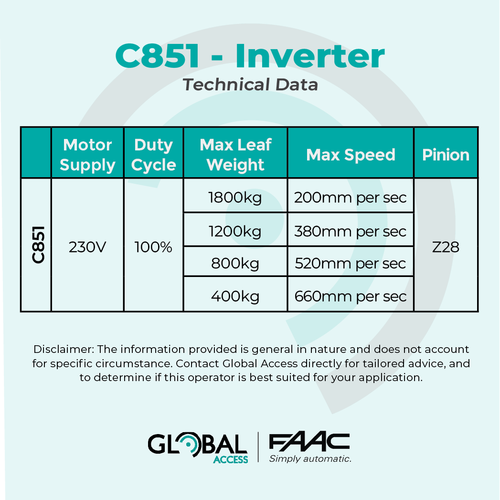

Model Variants Available:
- 1516-0008 - C851 with Z28 Pinion - 1800kg Max. Weight - 230v - Must use external safety - Up to 660mm/sec.
- 1516-0024 - C851 Chain Drive - 1800kg Max. Weight - 230v - Must use external safety - Up to 660mm/sec.
