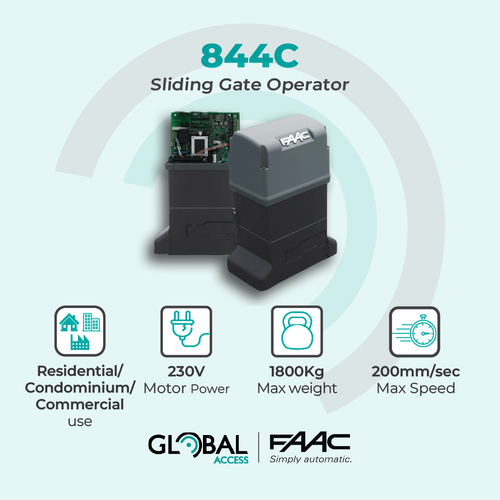

FAAC 844 230v Electric Sliding Gate Motor

1516-0003

The FAAC 844 oil-bath gearmotor are perfect for sliding gates up to 1800Kg, with correctly chosen Z16 pinion fitted.

  • Electronic Anti-crushing safety
  • Magnetic limit switches
  • As the gearmotor is non reversing, no electric locks need be installed
  • In the event of power failure, the key-operated release device makes it possible to open and close the gate manually
  • Twin-disk clutch in oil-bath
  • Inductive or magnetic travel limit (according to model)
  • Chain driven motor option available
  • Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

Height to top of Pinion: Z16 = 110mm / Z20 = 118mm

Model Variants Available:

1516-0003 - 844 Slider - Z16 Pinion
- 1800kg Max. Weight - 230v - 70 Cycles per hour - 160mm/sec 780D Control Board, Electronic and Encoder Anti-Crushing Protection

1516-0006 - 844 Slider - Z20 Pinion
- 1000kg Max. Weight - 230v - 70 Cycles per hour - 200mm/sec 780D Control Board, Electronic and Encoder Anti-Crushing Protection

1516-0005 - 844 Chain Driven Slider - with Z20 Chain Pinion [SPECIAL ORDER]
- 1000kg Max. Weight - 230v - 70 Cycles per hour - 200mm/sec

1516-0004 - 844 Chain Driven Slider - with Z16 Chain Pinion [SPECIAL ORDER]
- 1800kg Max. Weight - 230v - 70 Cycles per hour - 200mm/sec

IMPORTANT NOTES

• Kits do not contain radio gear or remotes
• Optional Foundation/Base Plate available: 6049-0164
• Optional 240V Professional Series UPS
• *Chain Drive 844 uses; 8B gauge chain (NOT INCLUDED IN THIS KIT)
• *Encoder kit available for chain driven operator, to be bought as an optional extra

Product Variations

Product Information


Product Specifications

Country of Origin:

EUROPEz

Important Notes:

Important Notes: We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles

Recommended Maximum Gate Weight:

Z16 = 1800Kg | Z20 = 1000

Duty Cycle:

Z16 = 50% Duty Cycle | Z20 = 70% Duty Cycle

Pinion Size:

Z28 | Z16

Height to top of pinion:

123mm (Z28) | 118mm (Z16)

Power Supply:

230v

Usage:

RESIDENTIAL | APARTMENT | COMMERCIAL

Weight Capacity:

1,800kg (Z16 Pinion)

Opening Speed:

Z16 = 160mm/sec Z20 = 200mm/sec

Closing Speed:

Z16 = 160mm/sec Z20 = 200mm/sec
