FAAC 746C 230v Electric Sliding Gate Motor
1516-0001
FAAC 746C Gearmotor for Sliding Gates: Reliable Automation for Gates up to 600Kg
The FAAC 746C gearmotor is an ideal solution for durable and reliable gate automation on sliding gates weighing up to 600Kg. Offering seamless operation and long-lasting performance, it is Ideal for both residential and commercial use, and is equipped with advanced features to ensure reliable, safe and smooth gate automation.
Key Features of the FAAC 746C Gearmotor:
- E781 Control Board: Equipped with a renewed control board for enhanced performance and easier gate management.
- Automatic Force Adjustment: Automatically adjusts the force level, optimising gate movement.
- Magnetic Limit Switches: Highly reliable magnetic limit switches for precise control of gate travel.
- Smooth Acceleration and Deceleration: Ensures smooth gate operation with carefully controlled speed ramps.
- Automatic Reversal System: High-resolution encoder provides obstacle detection for enhanced safety.
- Steel Gearing in Oil Bath: Reduces friction and noise while extending the life of the operator with smooth and quiet movements.
- Key-Protected Lever Release: Provides secure manual gate release in event of power outage.
- Non-Reversing Gearmotor: Provides extra security,.
- Height and Side Adjustable Fastening: Facilitates easy installation and precise alignment for optimal gate movement.
- Continuous usage
Available Variations for FAAC 746C:
- Z16 Pinion (1516-0001): Supports sliding gates up to 600Kg.
- Z20 Pinion (1516-0002): Ideal for sliding gates up to 400Kg.
Important Notes for Gate Automation Installers:
- Radio Gear and Remotes Not Included: Kits do not come with radio gear or remote controls.
- Optional Base Plate: The optional Foundation/Base Plate (6049-0164) is available for added stability.
- 240V Professional Series UPS: Ensures uninterrupted gate operation during power outages, ideal for continuous use in high-traffic areas.
Product Variations
Product Information

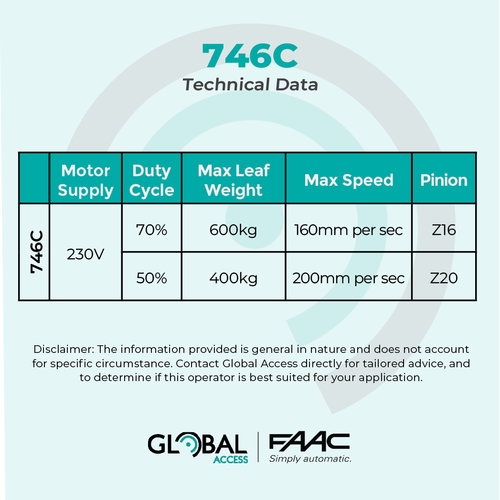

Product Specifications
Country of Origin:
Italy
Important Notes:
Important Notes: We recommend the use of devices such as Photo Beams as a minimum safety option to reduce the chance of injury to persons and damage to vehicles
Recommended Maximum Gate Weight:
Z16 Pinion = 600kg | Z20 Pinion = 400kg
Motor Volts:
230v
Duty Cycle:
100%
Pinion Size:
Z20 | Z16
Height to top of pinion:
118mm (Z20) | 110mm (Z16)
Power Supply:
230V
Usage:
RESIDENTIAL | CONDOMINIUM | COMMERCIAL
Weight Capacity:
Z20 = 400Kg | Z16 = 600Kg
Opening Speed:
Z16 Pinion = 160mm/sec | Z20 Pinion = 200mm/sec
Closing Speed:
Z16 Pinion = 160mm/sec | Z20 Pinion = 200mm/sec
