SOMMER Tiga Garage Door Openers

• 1981-0015 SOMMER S9080 Tiga Kit
• 1981-0071 SOMMER S9110 Tiga Kit

MOTOR SPECIFICATIONS:
S91080; Max. Door Weight = 160Kg | Max. Speed = 210mm/s | Max. Pull/Push Force = 800N
Max. Sectional Door Dimensions = 6000mm W x 2300mm H

S9110; Max. Door Weight = 200Kg | Max. Speed = 180mm/s | Max. Pull/Push Force = 1100N
Max. Sectional Door Dimensions = 8000mm W x 2300mm H

ALL KITS INCLUDE:
• 1 x Operator (NO REMOTES INCLUDED)

OPTIONAL:
• Remotes / Transmitters

Highest level of flexibility

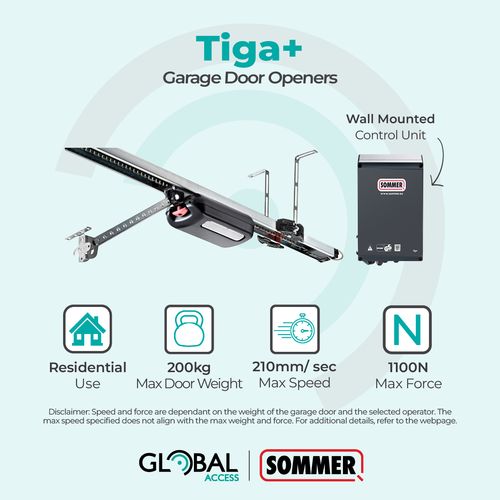

Thanks to the separate control unit housing for wall mounting, the passing of cars will not be impeded during installation of the control unit. The Tiga underground garage door operators use the same carriage. This reduces the storage space and storage costs for spare parts.

Safety thanks to encrypted radio control system
The garage door operator with bidirectional, rolling encrypted radio control system provides maximum security. The SOMloq2 radio control system transmits bidirectionally, which means that feedback on the send command or the door position can be received. The rolling code is encrypted with 128 bits, the same encryption that is used for online banking. Backward compatibility of the transmitter to the Somloq Rollingcode radio control system is always available.

Countless extensions
Useful extensions such as the Memo memory space extension, the Motion detector and countless other accessory modules are also available. Additional connection options are located directly on carriage (slip door contact and safety contact strip OSE or 8k2). Thanks to our modular system, extensions can be installed quickly and easily. Since the connections are located directly on the carriage, no spiral cables are necessary, saving you time and money.

Battery pack for power failures
During a power failure, the operator can be run in emergency mode with an optional battery pack and the door will never fail.

Emergency release
Thanks to the integrated SOMMER emergency release system, the carriage can be engaged and disengaged in any position. This ensures security in any position, even if there is a power failure.

Environmental and cost efficiency
The energy-saving operator consumes about < 1 watt of energy a year in standby mode, amounting to about €1.80 in electricity costs. It is thereby not only inexpensive to operate, but also environmentally-friendly.

Smooth-running and long-lasting
Thanks to the gear-saving technology, the garage door operator is extremely quiet, low-wear and has a very long lifetime. The operator is completely maintenance-free.

Optimal application of force
The motor track carriage moves itself along a permanently tensioned chain so that no frictional loss and no loss of power occurs as does with a revolving chain.

Clean chain
The galvanised chain is maintenance-free and does not need to be oiled. This prevents oil spots from getting on the door or vehicle.

Improved fire prevention
Due to the flame resistant materials, the operator offers a high safety factor and protects from fires starting.

Universal use – compatible with almost all door types
The Tiga underground door garage operator are well-suited for sectional doors, overhead doors, swinging doors, up-and-over doors* and side-opening/side-opening sectional doors. They achieve optimised door parameters thanks to a simple DIP switch function directly on the operator.

* Special fitting require
