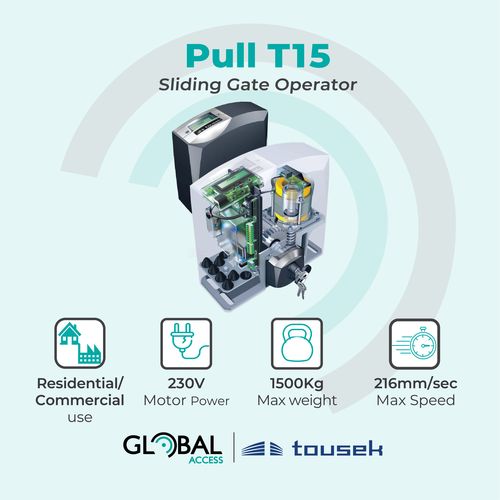

TOUSEK Pull T15 230v Electric Sliding Gate Motor - Inc. Belt Drive Version
1556-0027
This premium quality TOUSEK Pull T15 230V is suitable gates weighing up to 1500Kg. Also available is a Belt Drive Pull T15 Kit!
The Pull T range are European (Austrian) designed and manufactured oil-bath gearbox operator like no other when it comes to design and quality of build!
- Large illuminated LC Display
- At reduced rotation speed, no loss of force
- Self learning limit detection
- Automatic reversal system
- Adjustable soft stops
- Included adjustable base plate
- No limit switches
- Machine cut hardened steel gears
- Oil bath gear box
- Digital display cover
- Modern sleek style
- Master and Slave variants are available
- Standard accessory voltage 12VDC 200mAh
- Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!
VARIATIONS AVAILABLE:
• 1556-0027 - Z16 Pinion - Max. Weight 1500Kgs - Max. Speed 150mm/s
• 1556-0018 - Z20 Pinion - Max. Weight 1200Kgs - Max. Speed 183mm/s
• 1556-0014 - MASTER - Z20 Pinion - Max. Weight 1200Kgs - Max. Speed 183mm/s
• 1556-0015 - SLAVE - Z20 Pinion - Max. Weight 1200Kgs - Max. Speed 183mm/s
• 1556-0023 - Z24 Pinion - Max. Weight 1000Kgs - Max. Speed 216mm/s
• 1556-0024 - MASTER - Z24 Pinion - Max. Weight 1000Kgs - Max. Speed 216mm/s
• 1556-0025 - SLAVE - Z24 Pinion - Max. Weight 1000Kgs - Max. Speed 216mm/s
• 1556-0028 - Belt Drive - Max. Weight 1200Kgs - Max. Speed 183mm/s
OPTIONAL EXTRAS:
• 1018-0134 Global wire-in receiver and 2 x 2-button hand transmitter package
• 1018-0133 Tousek plug-in receiver and 2 x 2-button hand transmitter package
• 1012-0006 Tousek Pull T mounting angle, including DIN
• 5151-0008 DIN Rail Power Supply 15W 12A 1.25A
• 1018-0102 Tousek Pull T plug-in replay output (230V / 100W
OR [Choose either 1018-0102 or 1018-0101]
• 1018-0101 Tousek Pull T plug-in gate status module
• 1018-0125 Tousek Pull T emergency motorised release (includes control board & batter)
IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - Radio Kit can be found HERE
• Only One (1) optional genuine Tousek module can be fitted to the control board
Product Variations
Product Information

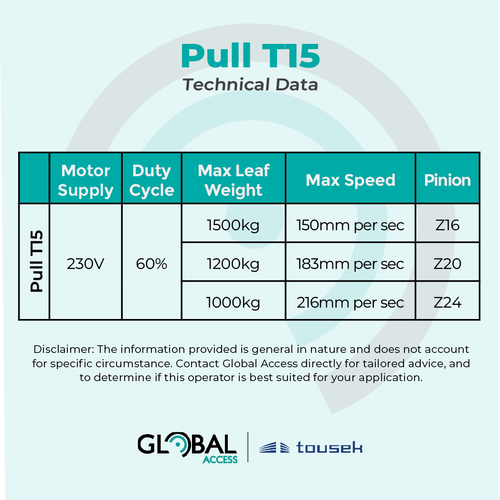

Product Specifications
Country of Origin:
AUSTRIA
Dimensions:
316mm W x 307mm H x 207mm D
Recommended Maximum Gate Weight:
Z24 = 1000Kg | Z20 = 1200Kg | Z16 = 1500Kg
Motor Volts:
230v
Duty Cycle:
60% Duty Cycle
Pinion Size:
Z24 Mod 4 | Z20 Mod 4 | Z16 Mod 4
Height to top of pinion:
Z24 = 119mm Plus Base Plate = 125mm | Z20 = 111mm Plus Base Plate = 117mm | Z16 = ___mm Plus Base Plate = ___mm
Usage:
RESIDENTIAL | CONDOMINIUM | COMMERCIAL
Opening Speed:
Z24 = 13m p/m 216mm p/s | Z20 = 11m p/m 183mm p/s | Z16 = 9m p/m 150mm p/s
Closing Speed:
Z24 = 13m p/m 216mm p/s | Z20 = 11m p/m 183mm p/s | Z16 = 9m p/m 150mm p/s
