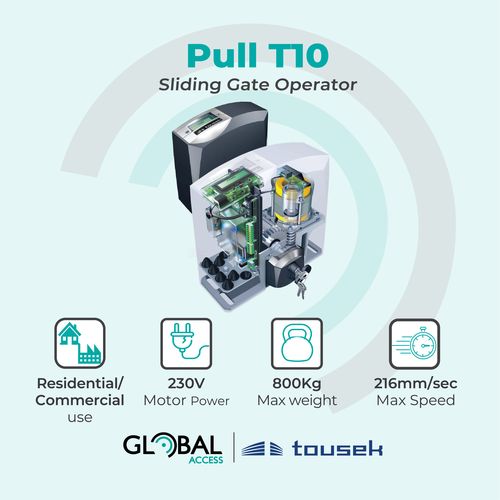

TOUSEK Pull T10 230v Electric Sliding Gate Motor

1556-0016

This premium quality TOUSEK Pull T10 230V is suitable gates weighing up to 800Kg.

The Pull T range are European (Austrian) designed and manufactured oil-bath gearbox operator like no other when it comes to design and quality of build!

  • Large illuminated LC Display
  • At reduced rotation speed, no loss of force
  • Self learning limit detection
  • Automatic reversal system
  • Adjustable soft stops
  • Optional adjustable base plate
  • No limit switches
  • Machine cut hardened steel gears
  • Oil bath gear box
  • Digital display cover
  • Modern sleek style
  • Master and Slave variants are available
  • Standard accessory voltage 12VDC 200mAh
  • Global Access recommend the use of a range increasing antenna to improve transmitter signal strength!

VARIATIONS AVAILABLE:
1556-0016 - Z24 Pinion - Max. Weight 800Kgs - Max. Speed 216mm/s
1556-0031 - MASTER - Z24 Pinion - Max. Weight 800Kgs - Max. Speed 216mm/s
1556-0032 - SLAVE - Z24 Pinion - Max. Weight 800Kgs - Max. Speed 216mm/s

OPTIONAL EXTRAS:
1018-0134 Global wire-in receiver and 2 x 2-button hand transmitter package
1018-0133 Tousek plug-in receiver and 2 x 2-button hand transmitter package
1012-0006 Tousek Pull T mounting angle, including DIN
5151-0008 DIN Rail Power Supply 15W 12A 1.25A
1018-0102 Tousek Pull T plug-in replay output (230V / 100W
OR [Choose either 1018-0102 or 1018-0101]
1018-0101 Tousek Pull T plug-in gate status module
1018-0125 Tousek Pull T emergency motorised release (includes control board & batter)

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - Radio Kit can be found HERE
• Only One (1) optional genuine Tousek module can be fitted to the control board

Product Variations

Product Information

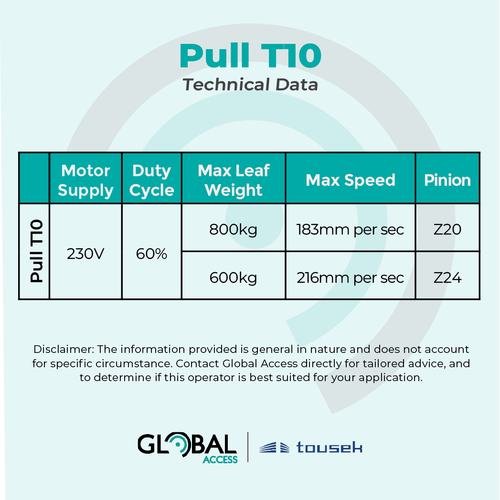

Product Specifications

Country of Origin:

AUSTRIA

Dimensions:

316mm W x 307mm H x 207mm D

Recommended Maximum Gate Weight:

800Kg

Motor Volts:

230v

Duty Cycle:

60% Duty Cycle

Pinion Size:

Z24 Mod 4

Height to top of pinion:

115mm Plus Base Plate = 121mm

Usage:

RESIDENTIAL | CONDOMINIUM | COMMERCIAL

Opening Speed:

13m p/m | 216mm p/s

Closing Speed:

13m p/m | 216mm p/s

Ground Stops Required:

YES
