BEA LZR Flatscan RS305
1059-0049

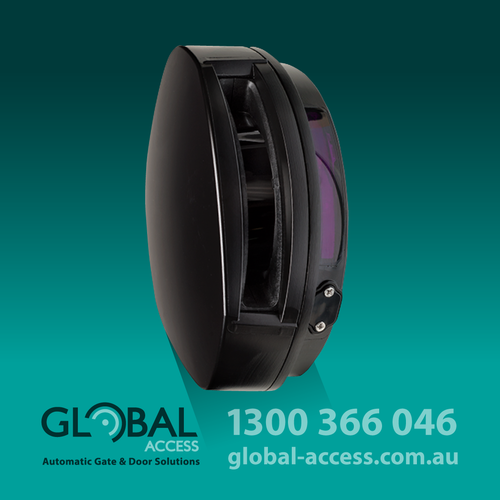

Compact time of flight laser scanner for industrial doors.
The LZR Flatscan RS305 model is to be mounted in a vertical application, and is suitable for use with Industrial Roller or Sliding Doors as a Safety feature with a maximum coverage area of 5.5m W x 5.5m H.

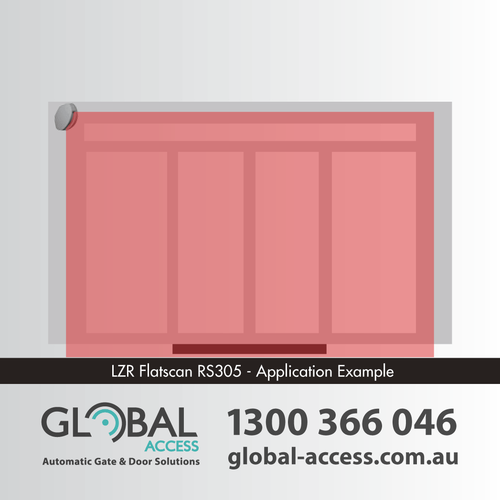

The LZR Flatscan RS305 creates a curtain (screen) over the entire width and height of the opening with extreme precision to deliver the highest level of safety possible. This guarantees full detection of the gate opening.
With an IP rating of 66, LZR Flatscan RS305 sensors are suitable for outdoor operation thanks to the integration of a heating system and rain/snow filter.
NOTE:
• The LZR requires a BEA Remote for programming (1059-0022) **REQUIRED ITEM**
• In some applications a 2Amp separate power supply may be required, please confirm prior to ordering
Product Information
Product Specifications
Dimensions:
124mm L x 90mm H x 50mm D (without bracket)
Important Notes:
Maximum detection range of 5.5 x 5.5m (4m @ 5% reflectivity)
IP Rating:
IP66
Power Consumption:
≤ 2.3W; peak current: 1A
Power Supply:
12-24V DC
