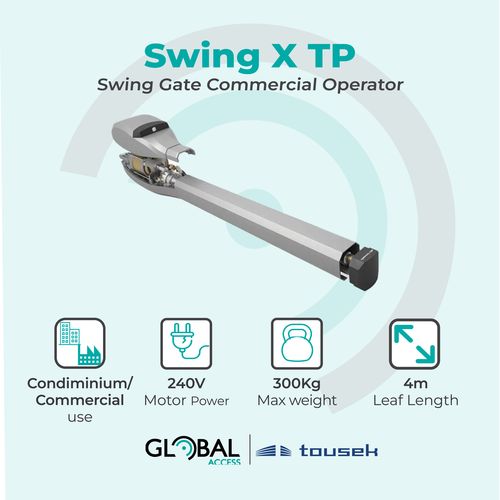

TOUSEK SWING X 3TP & 4TP 230V Inverter Driven Heavy Duty Swing Gate Motor Range

1616-0019

The TOUSEK Swing X 3TP and X 4TP 230V Inverter driven range offer the ability to move gate leaves up to a maximum of 4m in length.

3-Phase motor with inverter control, plugs into a standard GPO!

The advantages at a glance:

  • Commercial build quality
  • Machine cut, hardened steel gears
  • Standard (Euro-key) for manual release - can be cut to match your house key by a locksmith
  • Massive motor-gear unit for reliable power transmission
  • Self-locking spindle for maximum stability - NO ADDITIONAL LOCKS REQUIRED!
  • The Control Board logs and stores the last 800 cycles
  • The display is readable from outside the enclosure
  • High quality materials for long-term operation
  • Integrated mechanical stops for ease of installation
  • Comfortable emergency release
  • Smart Plug & Play controls for maximum operating comfort
  • Standard soft stop for smooth gate movement
  • Clever mounting design for smooth motion
  • Automatic reversing if an obstacle is encountered
  • 3 phase motor offers inverter control, still plugs into a General Power Outlet (GPO)
  • 80% duty cycle
  • Global Access recommend the use of a range increasing antenna to improve transmitter signal strength

Opening Speeds:
X 3TP offers fast opening time of 10 seconds for 90°
-> 320mm of travel in 10 seconds

X 4TP offers fast opening time of 18-32 seconds for 90°
-> 450mm of travel in 18-32 seconds

Inverter Driven Variants:
X 3TP - 200Kg Max. Leaf Weight, 2m Max. Leaf Width | ST63 Control box | 4000N Max. Force | 320mm Working Stroke | 80% Duty Cycle
X 4TP - 300Kg Max. Leaf Weight, 4m Max. Leaf Width | ST63 Control box | 5000N Max. Force | 450mm Working Stroke | 80% Duty Cycle

IMPORTANT NOTES:
• Kits do not contain radio gear or remotes - choose optional TOUSEK Radio Kit
• MANDATORY use of safety items such as photo-beams (vehicle safety) and appropriate safety-sensors or edge-sensors (pedestrian safety) MUST BE USED!
• MUST USE shielded cable for encoder

Product Variations

Product Information


Product Specifications

Country of Origin:

AUSTRIA

Recommended Maximum Gate Weight:

Swing X 3TP - 200Kg @ 2m (per leaf) | Swing X 4TP - 300Kg @ 4m (per leaf)

Motor Volts:

230V, 3 Phase inverter controlled (Plugs into a General Power Outlet)

Duty Cycle:

80%

Usage:

RESIDENTIAL | APARTMENT | COMMERCIAL

Opening Speed:

Total Stoke Travel Time; Swing X 3TP = 10sec (including slow-down) | Swing X 4TP = 18-32sec (including slow-down)

Cable Required:

230V = 4 x 0.75mm² | Low Voltage = 3 x 0.75mm²

Minimum Side Room:

200mm - 260mm

Maximum Gate Length:

Swing X 3TP - 2m | Swing X 4TP - 4m
