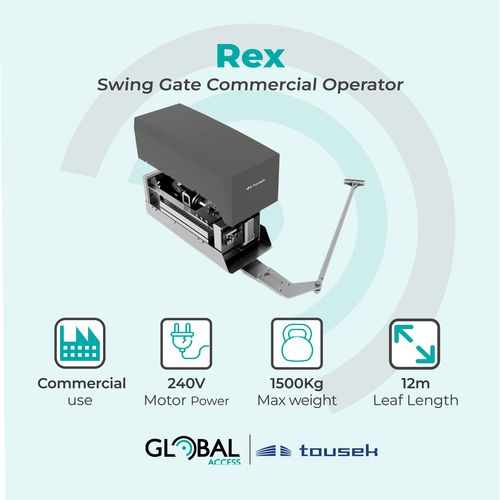

TOUSEK - REX Heavy Duty Swing Gate Motor

1616-0014

The TOUSEK REX operator is suitable for large, heavy swing gates, with leaves up to 12m in length.

Please note that this is an extremely large motor, to give you perspective, they are the size of a car engine!

The advantages at a glance:

  • 100% Duty Cycle
  • Standard (eurokey) for manual release - can be cut to match your house key by a locksmith
  • Up to 1,500Kg (per leaf) - Maximum 12m leaf width
  • Max. 110° Opening angle
  • Angele measurement made via absolute encoder
  • Integrated mechanical stops for ease of installation - NO ADDITIONAL LOCKS REQUIRED!
  • Motorised locking bar function
  • Adjustable soft stop
  • Massive triple-chain drive system
  • Mechanical brake for safe stop
  • High quality materials for long-term operation

ALL KITS INCLUDE:
• Rex operator including integrated control board, with Rex force arm, bracket, emergency release and 3.5m cable

IMPORTANT NOTE:
• Kits do not contain radio gear or remotes - TOUSEK Radio Kit
• Welding is required as part of the installation

Product Variations

Product Information


Product Specifications

Country of Origin:

AUSTRIA

Dimensions:

Motor Unit = 820mm L x 360mm W x 290mm D

Maximum Gate Weight:

1,500Kg @ 12m (Per Leaf)

Motor Volts:

230V

Number of Daily Cycles:

100% Duty Cycle

Opening:

Maximum 12m long leaf

Usage:

APARTMENT, COMMERCIAL

Wind Loading Capacity:

10

Cable Required:

3 x 1.5mm², 2 x 0.5mm² shielded

Minimum Side Room:

at 110° 1271mm

Product Weight:

1,500kg at 12m

Ground Stops Required:

Has build in stops

Maximum Gate Length – Single Leaf Gate:

12m Opening

Maximum Gate Length – Double Leaf Gate:

24m Opening
